5" PCD with TCT Diamond Cup Wheel | 7/8 Inch Arbor

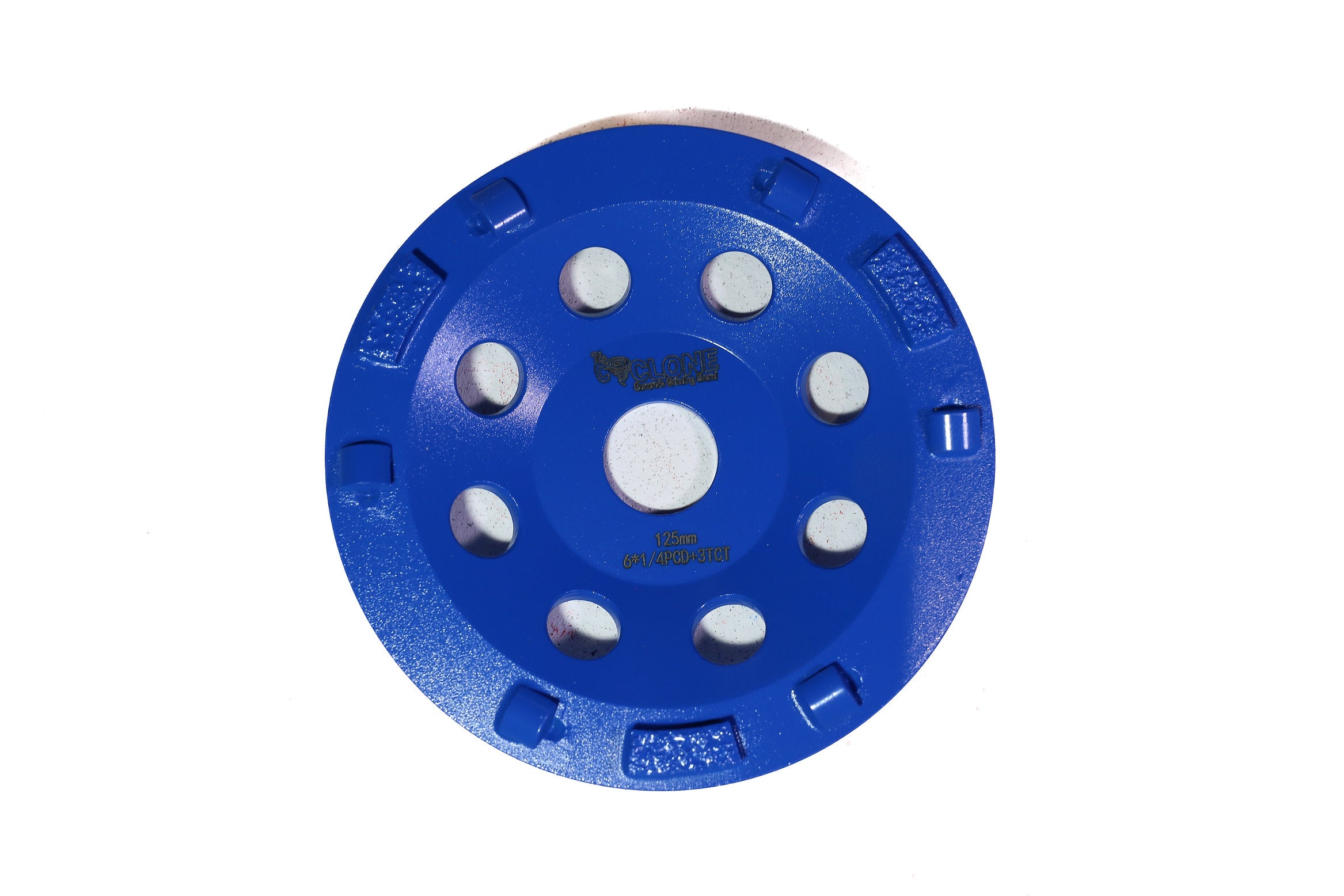

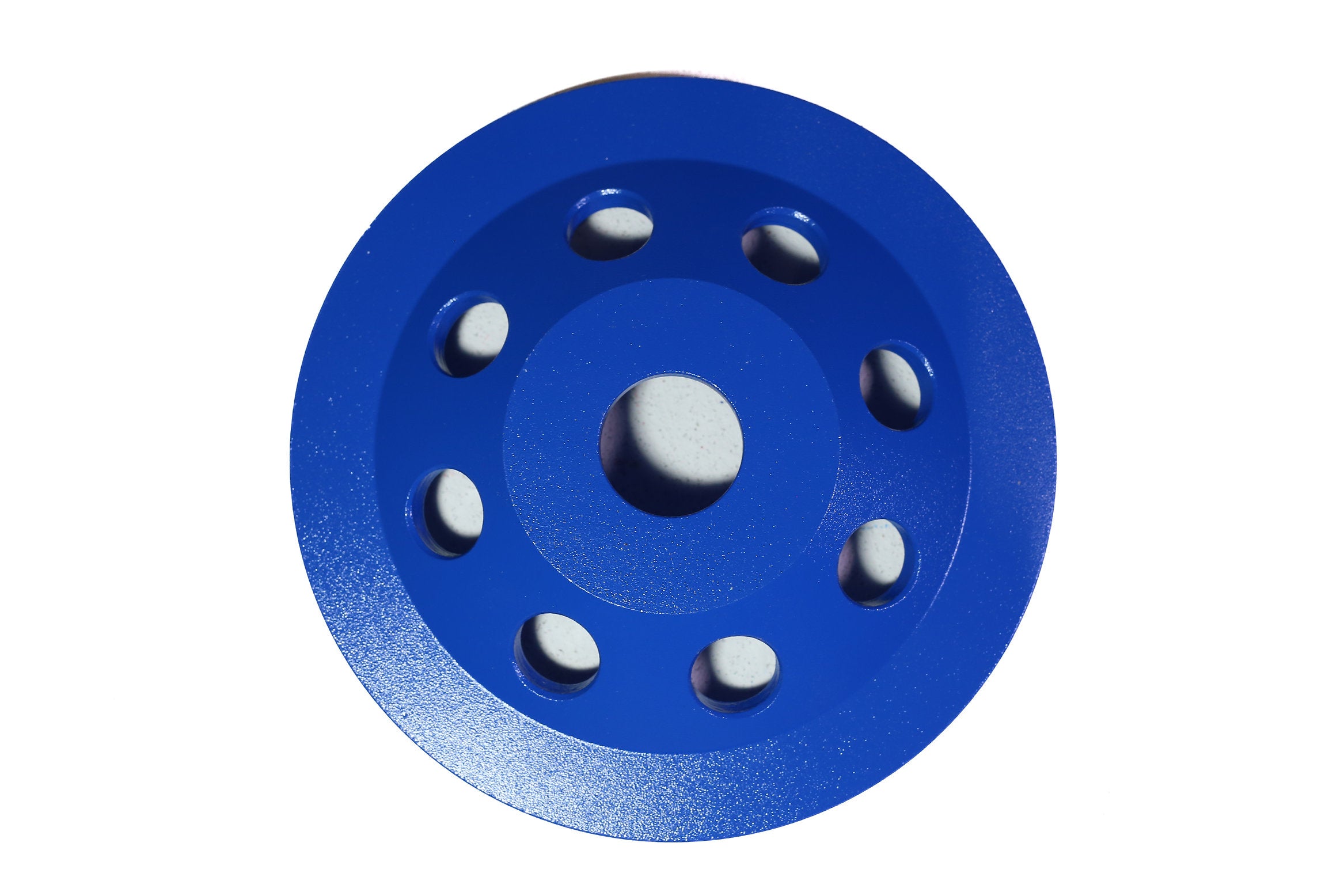

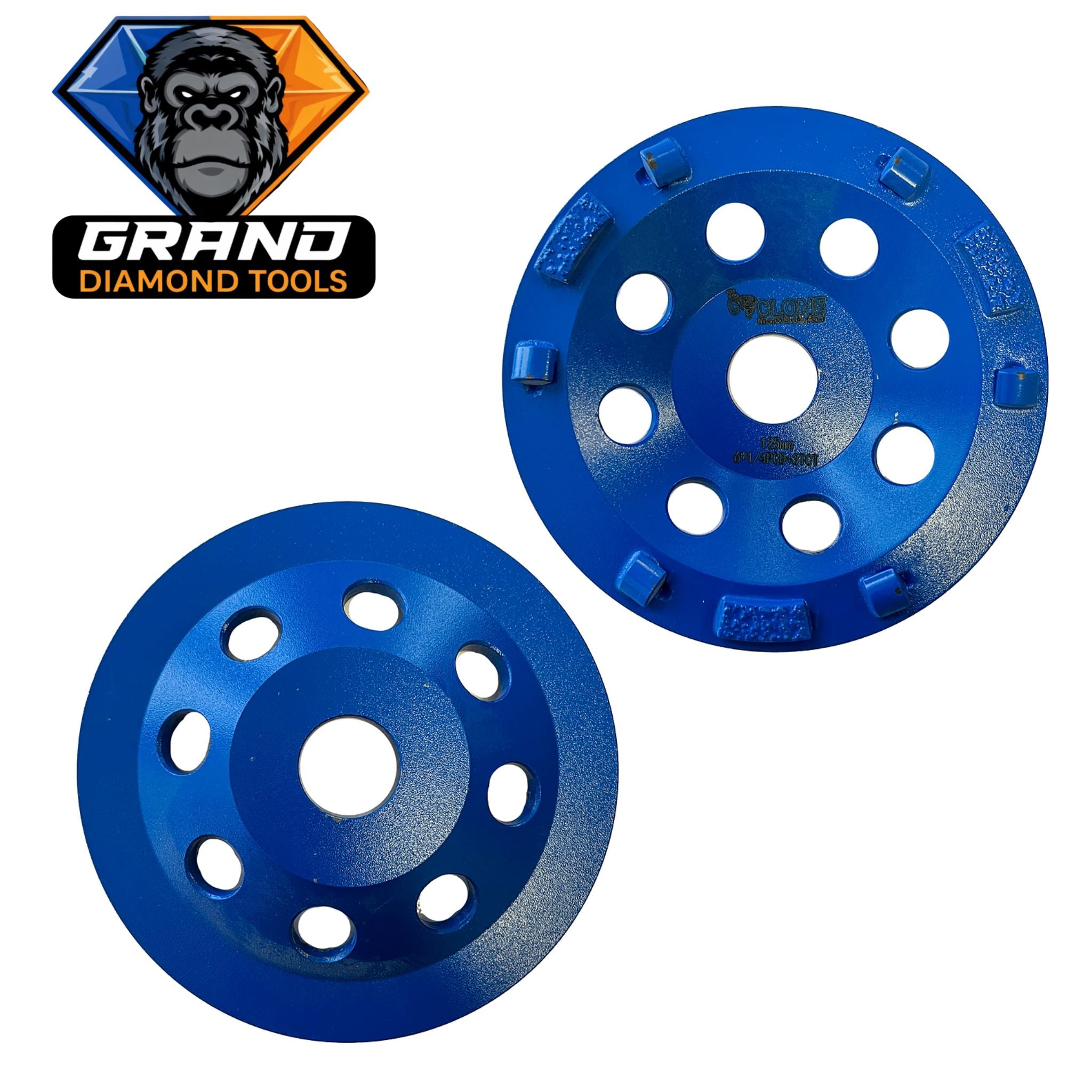

Professional 5” PCD with TCT Diamond Cup Wheel

This heavy-duty 5” PCD with TCT diamond cup wheel is built for coating removal with light marking on concrete surfaces. Its combination of polycrystalline diamond cutting elements and TCT support segments helps remove stubborn surface materials efficiently while maintaining controlled contact with the slab, making it a dependable choice for contractors handling demanding prep and removal applications.

Key Features

• PCD with TCT design: Combines polycrystalline diamond cutting elements with TCT support segments for effective coating removal on concrete surfaces.
• Built for removal applications: Designed to strip coatings and surface build-up efficiently while leaving light surface marking compared to more aggressive removal tools.
• Polycrystalline diamond cutting action: Delivers strong removal performance on coatings, adhesives, and other stubborn surface contaminants.
• 7/8 inch arbor: Made for compatible hand grinders using a standard 7/8” arbor setup for secure fitment.
• 5” diameter: Offers strong control and access for detailed removal work, edge work, and smaller surface areas.

Applications

Suitable for coating removal, adhesive removal, and concrete surface preparation where light surface marking is acceptable prior to additional grinding or finishing steps.

How to Use

1. Choose the correct specification and diameter for your application.
2. Mount the cup wheel securely onto the grinder using the proper 7/8” arbor hardware.
3. Maintain a steady RPM and do not force the cup. Keep it moving in a smooth, consistent motion to avoid gouging the surface.
4. Ensure the grinder is in good condition. A clean, straight spindle and flange will reduce wobble and wear.

Tips & Tricks

• Inspect your grinder’s bearings, spindle, flange, and dust shroud. A bent spindle or dirty flange can cause wobble and uneven wear.
• If using with a dust shroud, make sure there’s only a small gap (around 1/8”) between the shroud and the floor for optimal vacuum suction.
• Follow up with a suitable diamond grinding cup or finer prep tool if additional surface refinement is needed.
